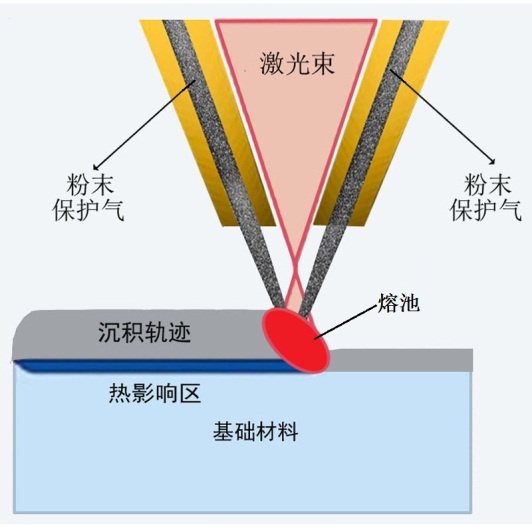

The vertical five-axis linkage machining center is combined with the laser powder feeding direct energy deposition system to form a five-axis linkage additive manufacturing equipment.

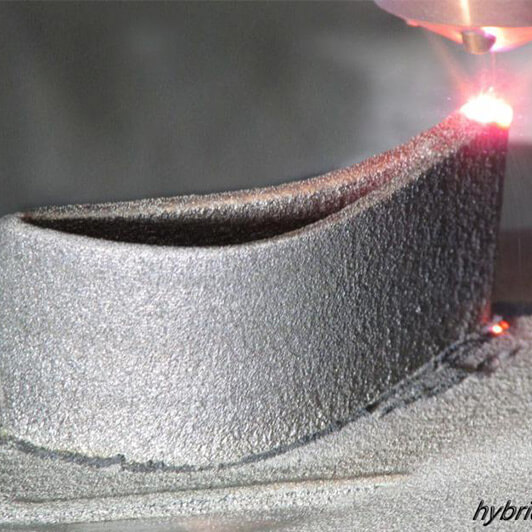

The equipment retains all the functions of the traditional 5-axis linkage machining center, and has the capabilities of additive manufacturing (3D printing), repair and remanufacturing, laser modification of the part surface, and functional structure development of gradient materials. The main advantages of additive manufacturing are the realization of 5-axis linkage, the elimination of printing support, and the application of innovative manufacturing processes that increase and decrease.

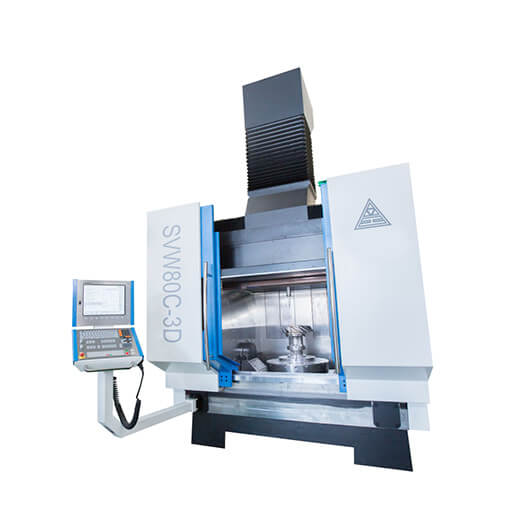

| SHW100-3D | SVW80C-3D | SVW60C-3D | |
| Printed size（mm） | φ1000x600 | φ1000x400 | Φ600x400 |
| Diameter of workbench（mm） | φ1000 | Φ800 | Φ400 |
| Laser power（W） | 2000 | 2000 | 1200 |
| Deposition efficiency（cm³/h） | 300 | 300 | 120 |
| Capacity of tool magazine（pcs） | 40 | 30 | 30 |
| Controlling system | Heidenhain TNC (Huazhong HNC-848 is optional) | ||
| Positioning Accuracy of X/Y/Z axis（μm） | 6 | 6 | 6 |
| Repeat Positioning Accuracy of X/Y/Z axis | 4 | 4 | 4 |
| System of arc fuse（optional） | High-efficiency printing for stainless steel, aluminum alloy and other materials; deposition efficiency is 2-6 kg/h | ||
| Device of atmosphere protection（optional） | For laser printing titanium and other active metals | ||
| Device of automatic tool setting （optional） | Automatic measurement and calibration of tool diameter and length | ||
| Hybrid programming software（optional） | HybridWise AM Software | ||
Advanced Production Technology and Processing Equipment as Quality Assurance sunlight currently operates nearly 100 CNC processing machines, with a total equipment investment exceeding 200 million RMB.
The five-axis machining accuracy of the company’s recent products is comparable to that of imported equipment, significantly increasing production capacity.
The five-axis linkage machine tool can complete the pentahedron processing of the workpiece through one clamping of the workpiece, which is especially suitable for the flexible production needs of many varieties and small batches.
